feat: Implement the module model: rename, mitosis, scoped buses, panels, Studio face - #255
Draft
Yona-Appletree wants to merge 18 commits into
Draft
feat: Implement the module model: rename, mitosis, scoped buses, panels, Studio face#255Yona-Appletree wants to merge 18 commits into
Yona-Appletree wants to merge 18 commits into
Conversation
… wire bump)
Rust surface of the P1 rename: ProjectDef -> ModuleDef, NodeKind::Project
-> NodeKind::Module, NodeDef::Project -> NodeDef::Module, PROJECT_VARIANT
-> MODULE_VARIANT ("Project" -> "Module"), ModuleDef::KIND "project" ->
"module", format probe renamed to read_module_format_json. nodes/project/
moved to nodes/module/ (SHAPE_ID regen lands in a later commit).
WIRE_PROTO_VERSION 4 -> 5: NodeKind serializes its variant name in
inventory frames and TreePath segments change from .project to .module.
The word "project" survives for container concepts (project.json, Studio
open-a-project flows, PROJECT_FORMAT_VERSION) per docs/design/modules.md.
Plan: lp2025/2026-08-01-1003-modules-impl-roadmap
Co-Authored-By: Claude Fable 5 <noreply@anthropic.com>
The tree-path kind segment comes from kind_name(), so the P1 KIND change silently re-addresses every node path. This commit is ONLY the path string sweep (/demo.project/orbit.shader -> /demo.module/orbit.shader) so review can eyeball path strings in isolation. Plan: lp2025/2026-08-01-1003-modules-impl-roadmap Co-Authored-By: Claude Fable 5 <noreply@anthropic.com>
Rust test fixtures plus the artifact corpora (15 examples/, projects/test, fw-browser smoke-project) and docs/design/source-artifacts.md. The schemas/history/v1 snapshot stays frozen (it documents the v1 format) and the 2026-07-27 defect entry keeps its historical quote. Plan: lp2025/2026-08-01-1003-modules-impl-roadmap Co-Authored-By: Claude Fable 5 <noreply@anthropic.com>
just schema-gen: project.schema.json now pins kind Module, ModuleDef shape id moves (module_path! is part of the hash), NodeArtifact $ref and the shape dump filename follow. Stragglers: schema generator variant name, Studio node-kind icon lookup + NodeKindIcon::Module, debug-UI kind labels, package_manifest default kind, node_kind_slug/label, justfile format-bump path, schemas/README, modules.md section-2 done note. Plan: lp2025/2026-08-01-1003-modules-impl-roadmap Co-Authored-By: Claude Fable 5 <noreply@anthropic.com>
…y the sweep format!-embedded \"kind\": \"Project\" fixtures (engine test helper, server/browser/opfs/history tests), UiPackageCard/UiExampleCard story kind fields, embedded example kind, node-authoring error copy. Pane title chips keep "Project" (container concept). Plan: lp2025/2026-08-01-1003-modules-impl-roadmap Co-Authored-By: Claude Fable 5 <noreply@anthropic.com>
Plan: lp2025/2026-08-01-1003-modules-impl-roadmap Co-Authored-By: Claude Fable 5 <noreply@anthropic.com>
… relocation (P2) project.json becomes the non-node container manifest (format/uid/name), read by a streaming JsonSyntaxSource probe and written by a hand-rolled deterministic writer — deliberately NOT a Slotted type, so no second shape/codec surface links into firmware. The root module node moves to /module.json; ModuleDef drops format/uid/name. PROJECT_FORMAT_VERSION 2 -> 3 (bump-and-refuse; v2 schemas snapshotted to schemas/history/v2). The load gate now reads the container: missing or malformed project.json is a HARD refuse per settled D-A, and a pre-mitosis kind-tagged root fails with a diagnosable manifest error. Corpora (15 examples, projects/test, smoke-project) split into the two files; starter project emits 9 files; registry/engine/shared fixtures migrated; new gate tests incl. missing-manifest and pre-mitosis roots. Plan: lp2025/2026-08-01-1003-modules-impl-roadmap Co-Authored-By: Claude Fable 5 <noreply@anthropic.com>
…split lpa-server, lpa-link fake device, lpa-fs-opfs, lpc-wire fixtures move to container manifest + module.json (delegated sweep); studio-core library, demo project, e2e harnesses, device-session and node-CRUD fixtures follow. Blank Created packages now also write a minimal module.json so they stay loadable — gated to blank creates so device pulls stay byte-faithful and adoption parity hashes cannot diverge. fw-browser uid patcher re-anchored on the manifest form (was silently broken by the split), smoke.html fetches module.json, package_manifest rewritten on ProjectManifest. Plan: lp2025/2026-08-01-1003-modules-impl-roadmap Co-Authored-By: Claude Fable 5 <noreply@anthropic.com>

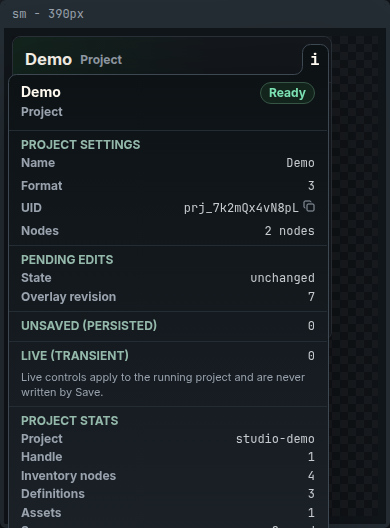

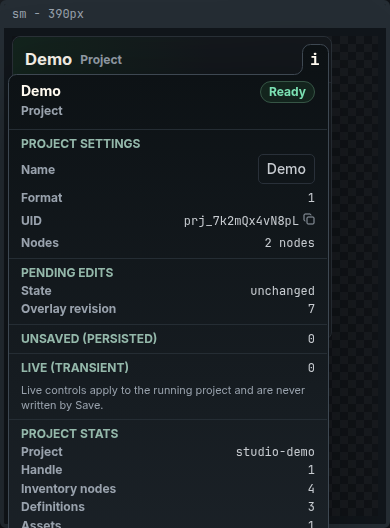

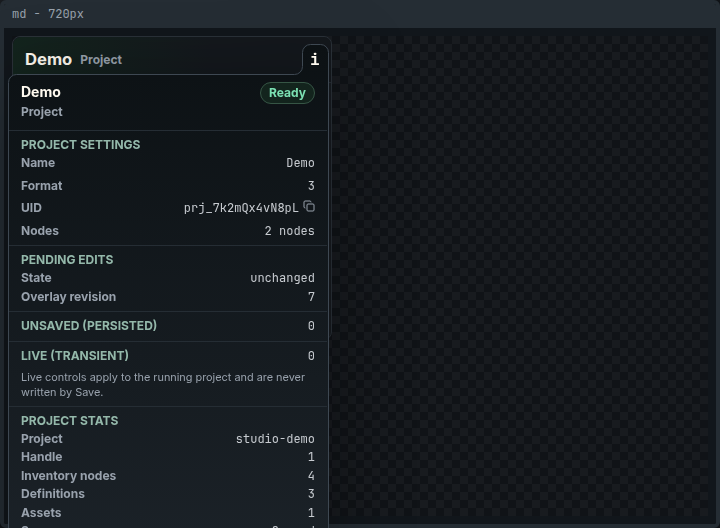

…P2 tests + ADR Settings popup renders format/uid/name read-only from the container manifest (UiProjectManifest on ProjectEditorView, sourced from the active library package); gallery rename now patches the manifest name as well as the slug. New tests: device-path wrong-format + missing-manifest refusal on the emulated firmware (rides the booted scene_render_emu), vendored module folder loads under the host project's gate (Q10 pinned), and a corpus byte-identity rewrite check for both split files. modules.md section-6/Q10 notes, schemas README, and the mitosis ADR. ADR: docs/adr/2026-08-01-project-module-mitosis-container-format-gate.md Plan: lp2025/2026-08-01-1003-modules-impl-roadmap Co-Authored-By: Claude Fable 5 <noreply@anthropic.com>
…provenance (P3) ModuleDef gains the authored surface the ratified model requires: bindings (R7's contention pick becomes authorable), exports (local slot -> inner-scope channel, bus: ref form; runtime interpretation lands with the module runtime), per-channel meta overrides (Q1 curation escape hatch, the spike's display vocabulary minus aliasing), and provenance. ProvenanceDef (author/version/license/created, settled Q7) is a capability of any node def; the container manifest carries the same four keys. Schemas regenerated; byte-stable round-trip pinned by test. Plan: lp2025/2026-08-01-1003-modules-impl-roadmap Co-Authored-By: Claude Fable 5 <noreply@anthropic.com>
…egistry (P4)
Scope identity becomes a queryable engine fact (modules.md R1/R2):
ScopeRef {Module, Sink} stored on every runtime node entry, assigned by
ensure_runtime_spine on BOTH load and apply so an edited project can
never wear different scopes than a reloaded one; present on Pending/
Failed entries and untouched by payload reattach. Query API on the tree:
scope_of, scope_introduced_by, scopes, scope_channels (R3/R4 listing
grouping), scope_persist_path — sink scopes key by the authored playlist
entry (…/entries[k]) so panel state will follow the slot, not the
content, and stay stable under sibling reorder and reattach.
The dead runtime Bus/ChannelEntry value registry is deleted (its only
construction was an empty throwaway for DestroyCtx); Destroy/MemPressure
contexts slim to node+frame. No resolution behavior change — pinned by
the load-vs-apply differential and the untouched engine suite.
Plan: lp2025/2026-08-01-1003-modules-impl-roadmap
Co-Authored-By: Claude Fable 5 <noreply@anthropic.com>
…ion rule deleted (P5)
QueryKey::Bus becomes {scope, channel}: bus demand carries the READING
node's scope into the cache and cycle-detection identity, so same-named
channels in different scopes can never collide or fake a cycle. The
resolver stays scope-dumb — the host answers 'which providers win for a
read from this scope' via NodeTree::providers_for_bus_read, a pure
outward walk (R5) that never descends into a scope, which is what makes
sink-scope no-demand hold by construction (R2) instead of via the
spike's probe-side filter. Provider re-reads key off the provider's own
scope; unscoped public reads resolve from the root scope.
The playlist ownership-suppression rule is deleted: entry children now
default-publish visual.out like every producer — into their entry's sink
scope, invisible to enclosing reads by construction (tests flipped to
pin the new shape, incl. probe-with-values never ticking a sink-scope
producer). Three correctness obligations pinned: adversarial two-scope
cache soundness, depth-2 writer-shadowing/inheritance (E5 minus the P6
mirror), and the load-vs-apply wiring differential.
Plan: lp2025/2026-08-01-1003-modules-impl-roadmap
Co-Authored-By: Claude Fable 5 <noreply@anthropic.com>
…ed (P6) Every module node — root included — now wears a live ModuleNode runtime (harvested from the spike's ProjectNode mirror): produce resolves the module's own introduced scope's visual.out through the scoped resolver key and forwards render/sample dispatch to the producing node; a scope with no visual writer renders cleared (a module without a visual is a legitimate shape). Never feature-gated — the runtime links into every firmware image (C6 headroom after: 243,952 B). register_node_bindings' module early-return is gone: modules register authored bindings (the R7 contention pick), authored exports (inner channel republished under the export name — module-owned bus reads resolve from the INTRODUCED scope via the host reading-scope rule), and the automatic output→visual.out fallback publish for non-root modules (the drop-in rule). The apply-path root reattach installs the same runtime, so an applied project equals a reloaded one. Primary visual becomes an engine-reported role: WireBusChannel gains primary_visual, decided once in the probe (root-scope listing of the vocabulary channel); Studio's channel.name == "visual.out" string tests are gone. E5 depth-2 is pinned: a consumer beside an embedded module resolves the sibling's publish, never root's. Plan: lp2025/2026-08-01-1003-modules-impl-roadmap Co-Authored-By: Claude Fable 5 <noreply@anthropic.com>
Supersedes the #218 branch ADRs (2026-07-28-scoped-buses, 2026-07-28-effects-are-projects) with pointers. Plan: lp2025/2026-08-01-1003-modules-impl-roadmap Co-Authored-By: Claude Fable 5 <noreply@anthropic.com>
…ommit branch switch The dx build rewrites lp-app/lpa-studio-web/assets/tailwind.css in the CI working tree; the dirty tracked file aborted 'git checkout -B' in the auto-commit step, so genuine story drift could never self-commit. Plan: lp2025/2026-08-01-1003-modules-impl-roadmap Co-Authored-By: Claude Fable 5 <noreply@anthropic.com>
…-modules-roadmap-4cdecb
…::Project refs Main's new feature-gate tables (lpc-model/src/feature.rs, lpc-engine/src/features.rs) referenced the pre-rename kind; renamed to NodeKind::Module (module stays ungated — None feature mapping). Plan: lp2025/2026-08-01-1003-modules-impl-roadmap Co-Authored-By: Claude Fable 5 <noreply@anthropic.com>
Captured in the pinned CI environment by run: https://github.com/light-player/lightplayer/actions/runs/30722947317
Contributor

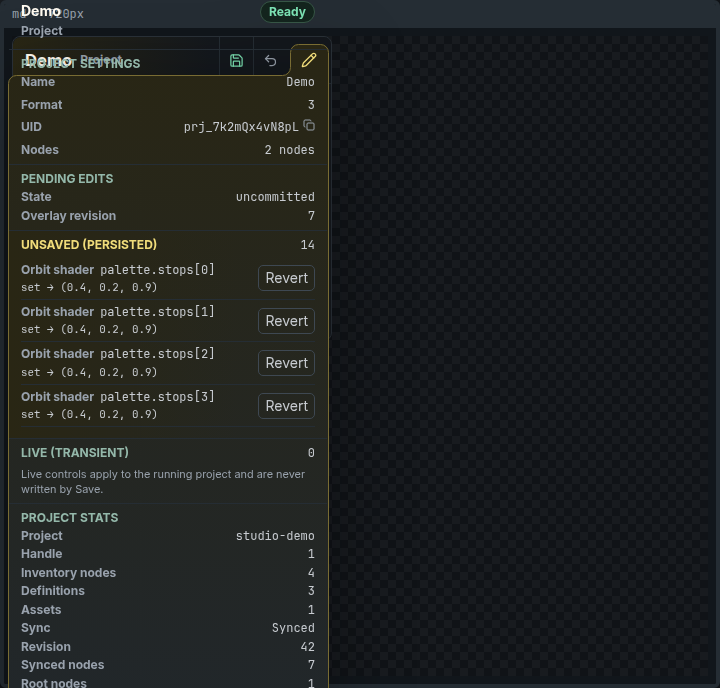

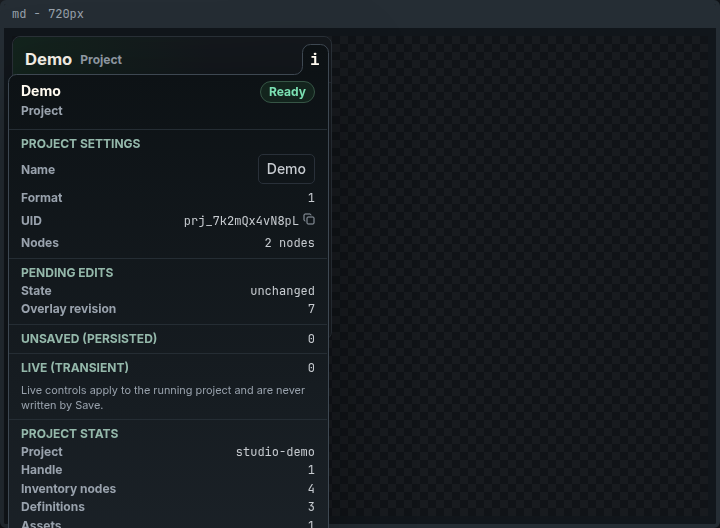

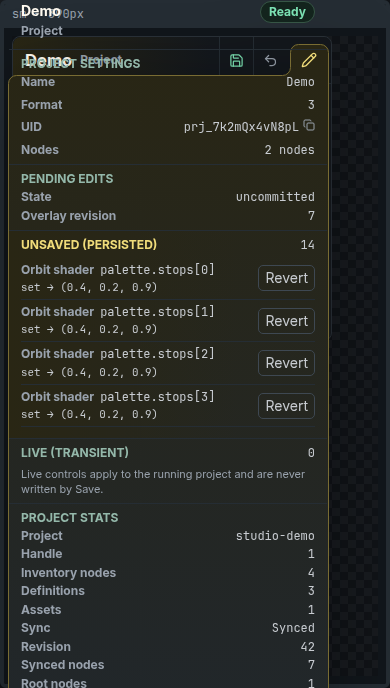

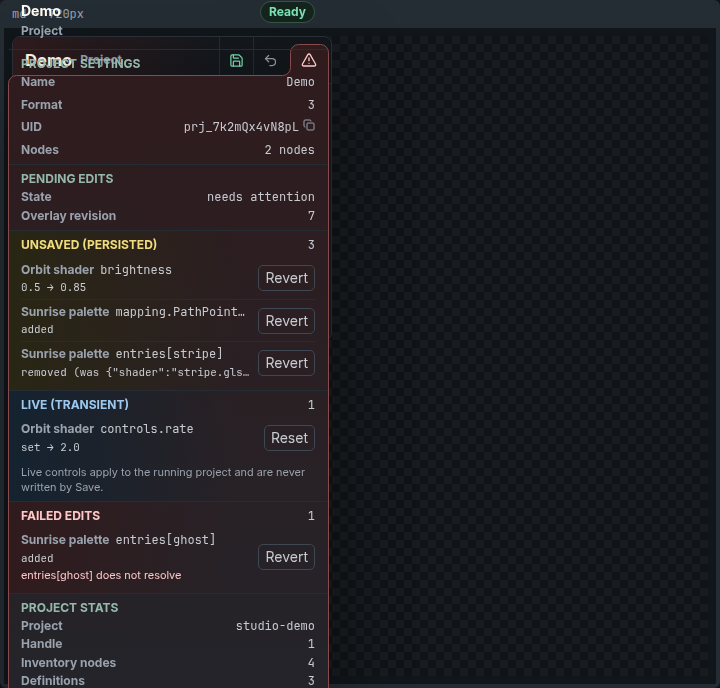

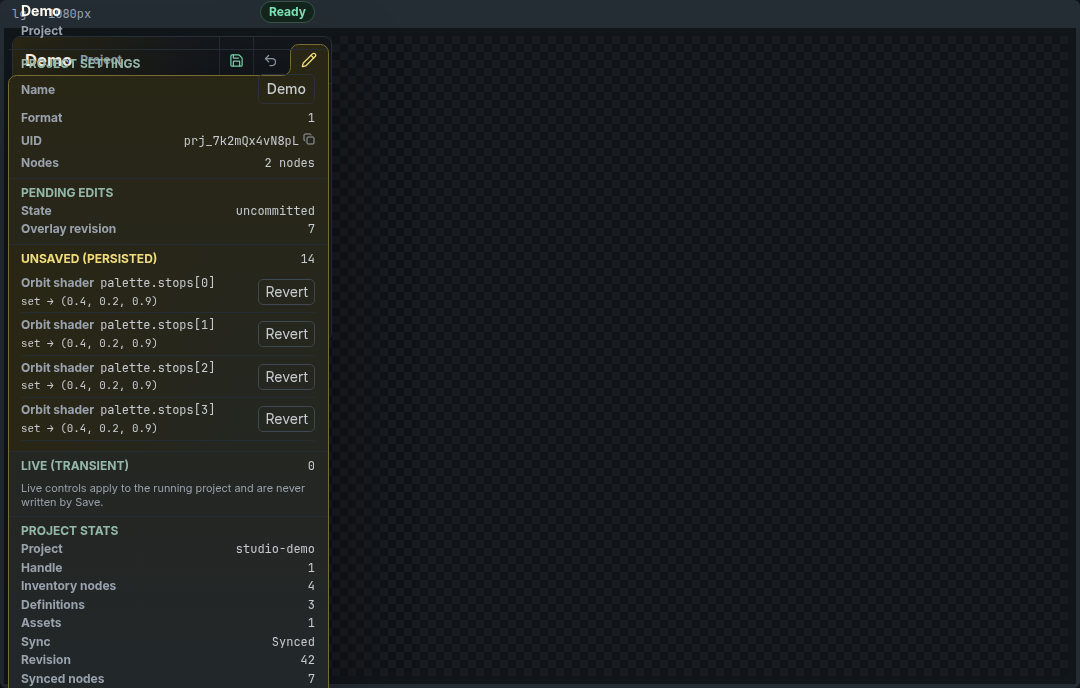

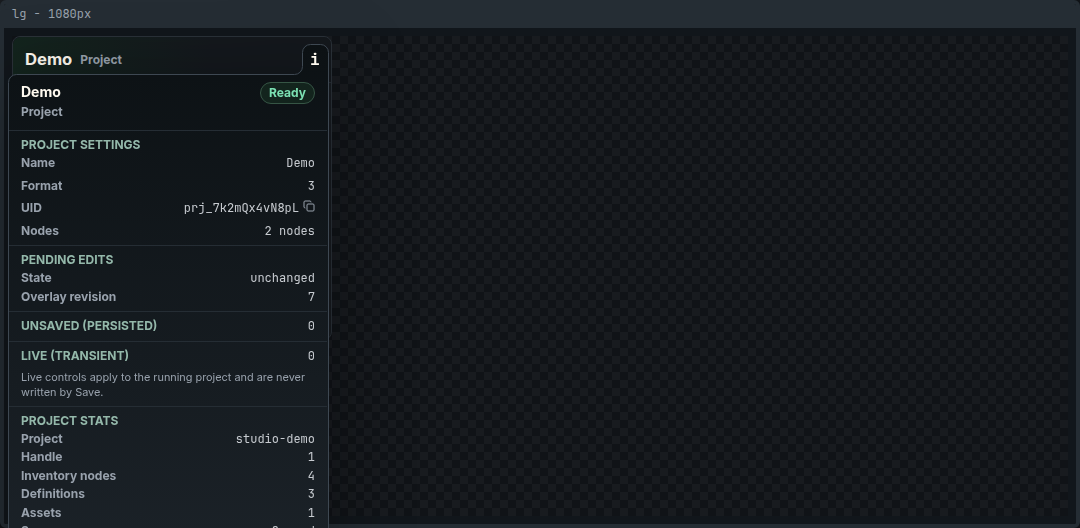

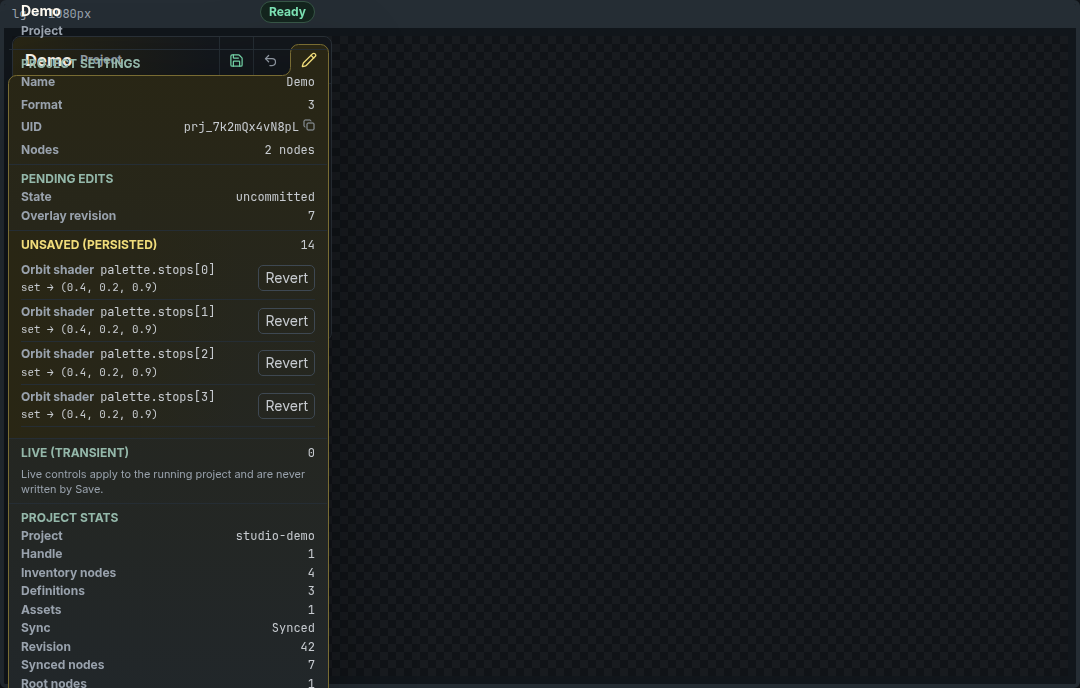

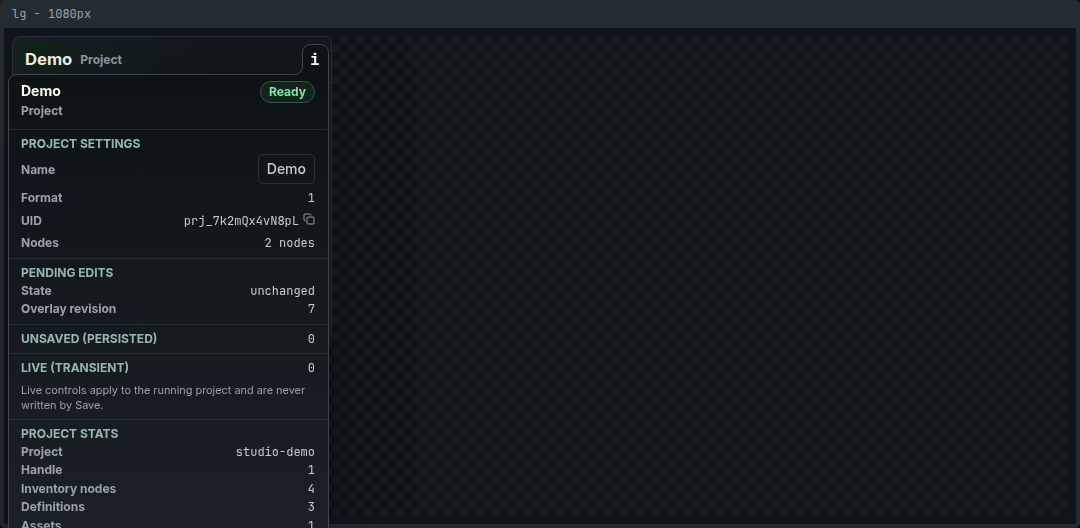

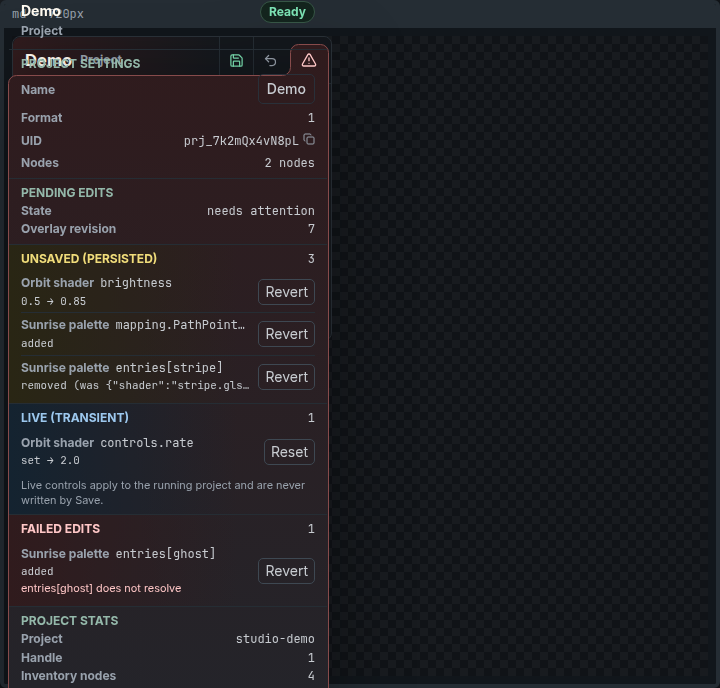

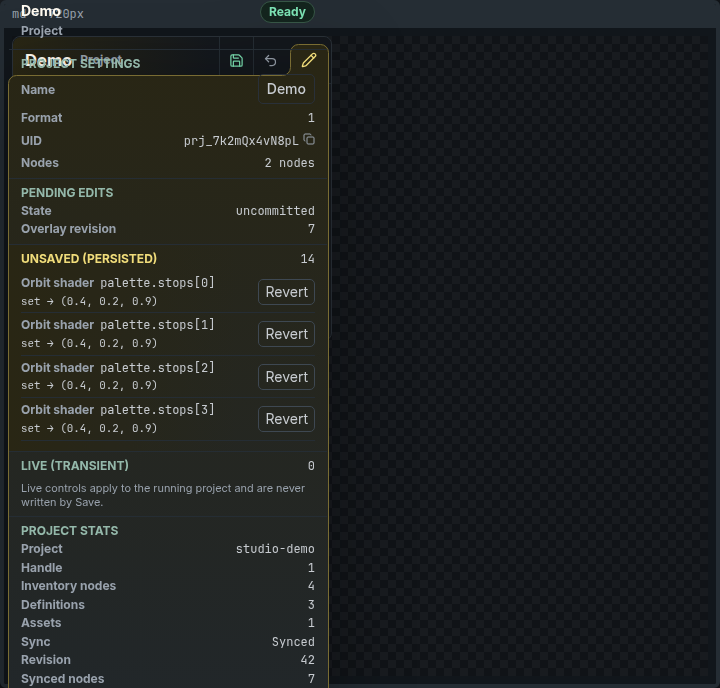

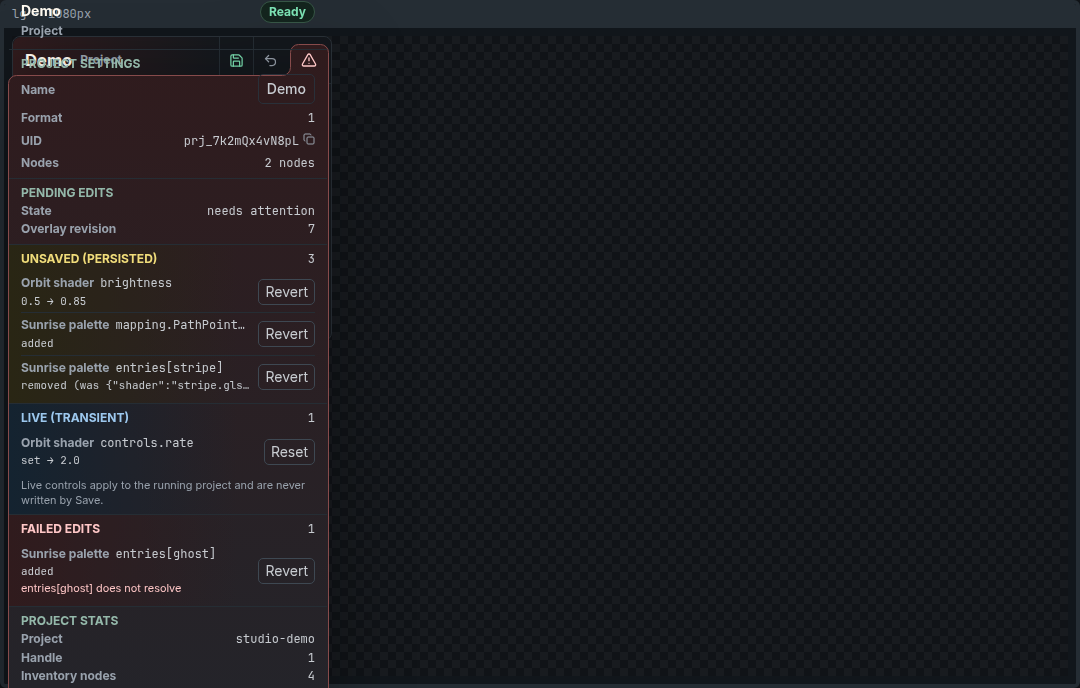

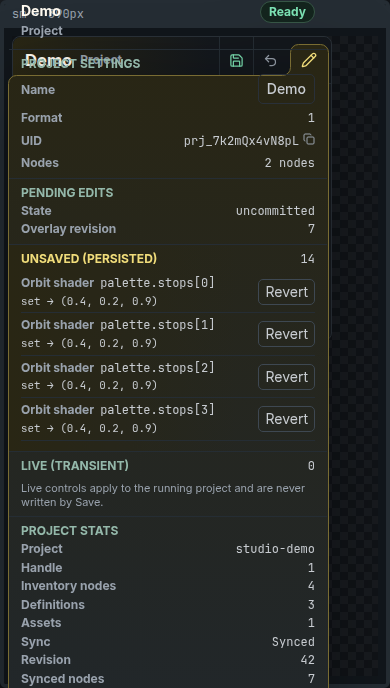

CI refreshed the story baselines on this branchThe Review every PNG in the PR's Files changed view (swipe / onion-skin).
12 more file(s)
|
This file contains hidden or bidirectional Unicode text that may be interpreted or compiled differently than what appears below. To review, open the file in an editor that reveals hidden Unicode characters.
Learn more about bidirectional Unicode characters
Sign up for free
to join this conversation on GitHub.
Already have an account?
Sign in to comment
1 participant
Add this suggestion to a batch that can be applied as a single commit.This suggestion is invalid because no changes were made to the code.Suggestions cannot be applied while the pull request is closed.Suggestions cannot be applied while viewing a subset of changes.Only one suggestion per line can be applied in a batch.Add this suggestion to a batch that can be applied as a single commit.Applying suggestions on deleted lines is not supported.You must change the existing code in this line in order to create a valid suggestion.Outdated suggestions cannot be applied.This suggestion has been applied or marked resolved.Suggestions cannot be applied from pending reviews.Suggestions cannot be applied on multi-line comments.Suggestions cannot be applied while the pull request is queued to merge.Suggestion cannot be applied right now. Please check back later.
Plan: lp2025/2026-08-01-1003-modules-impl-roadmap
Path: ~/.photomancer/planning/lp2025/2026-08-01-1003-modules-impl-roadmap/plan.md
Implements the ratified modules/buses/panels design (docs/design/modules.md, panel.md, PR #230). This PR carries the P1–P6 stretch, ending at gate G3 (behavior review).
Complete:
ADRs: 2026-08-01-project-module-mitosis-container-format-gate, 2026-08-01-scoped-bus-engine-architecture (supersede the #218 branch ADRs).
At gate G3 (behavior) — remaining phases P7–P13 continue after the gate. Do not merge PR #248 or the #218 branch — harvest sources only.
Resume notes: read plan.md + phase files in the planning dir; discovery in ../2026-07-31-1002-modules-buses-panels/notes.md.
🤖 Generated with Claude Code
