[EuiToolTip] Improve tooltip group transition

[weronikaolejniczak]

Previously reverted on #9748 to derisk a release due to changes needed: elastic/kibana#274383

It was already reviewed and tested, it's good to smoke-test and go again.

Summary

Adjacent EuiToolTip triggers show visually disjoint tooltips. They re-play entry fade-in animation on every hover (~150ms delay + ~90ms fade).

Most design systems solve this by skipping the entry animation within a certain window of time. The show and hide stays synchronous (no timer), preserving the screen-reader behavior from #9626.

The anchor now listens with non-bubbling onMouseEnter/onMouseLeave instead of onMouseOver/onMouseOut. This removes the old relatedTarget filtering that was supposed to fix a flicker where the tooltip could hide when the cursor moved between inner children of the trigger.

Inline animation: none must be on first popover render, not after positionToolTip, otherwise CSS keyframes fire briefly before override.

API Changes

N/A

Screenshots

Impact Assessment

Note: Most PRs should be tested in Kibana to help gauge their Impact before merging.

• 🔴 Breaking changes — What will break? How many usages in Kibana/Cloud UI are impacted?
• 💅 Visual changes — May impact style overrides; could require visual testing. Explain and estimate impact.
• 🧪 Test impact — May break functional or snapshot tests (e.g., HTML structure, class names, default values).
• 🔧 Hard to integrate — If changes require substantial updates to Kibana, please stage the changes and link them here.

Impact level: 🟢 Low

• VRTs are unaffected (it's an animation change),
• there is impact for consumers: nested tooltips now won't work as expected by consumers because of no bubbling. Only internal tooltip will be shown.

Prepped changes: Kibana PR

Release Readiness

• Documentation: {link to docs page(s)}
• Figma: {link to Figma or issue}
• Migration guide: {steps or link, for breaking/visual changes or deprecations}
• Adoption plan (new features): {link to issue/doc or outline who will integrate this and where}

QA instructions for reviewer

Behavior

• There's only ever one tooltip at a time (potential regression to the tooltip manager original intent)
• When triggers are next to each other, hovering over them skips animation
• When triggers are further from each other, hovering over them plays the full animation
• There is no flickering
• Turn reduced motion setting on and make sure tooltip displays correctly

Screen readers

• VO + Chrome announces tooltips reliably (potential regression)
• VO + Safari announces tooltips reliably (potential regression)
• NVDA announces tooltips reliably (potential regression)
• JAWS announces tooltips reliably (potential regression)

Checklist before marking Ready for Review

• Filled out all sections above
• QA: Tested light/dark modes, high contrast, mobile, Chrome/Safari/Edge/Firefox, keyboard-only, screen reader
• QA: Tested in CodeSandbox and Kibana
• QA: Tested docs changes
• Tests: Added/updated Jest, Cypress, and VRT
• Changelog: Added changelog entry
• Breaking changes: Added breaking change label (if applicable)

Reviewer checklist

• Approved Impact Assessment — Acceptable to merge given the consumer impact.
• Approved Release Readiness — Docs, Figma, and migration info are sufficient to ship.

[elastic-vault-github-plugin-prod]

2 visual difference(s) found - expand to review, then click Approve visual changes to update baselines

euicodeblock (1 difference)

Story	Before	After	Diff
virtualized code block scrolling desktop

euidatagrid (1 difference)

Story	Before	After	Diff
render custom toolbar desktop

[elastic-vault-github-plugin-prod]

2 visual difference(s) found - expand to review, then click Approve visual changes to update baselines

euidatagrid (2 differences)

Story	Before	After	Diff
compact desktop
render custom toolbar desktop

[snyk-io]

✅ Snyk checks have passed. No issues have been found so far.

Status	Scan Engine	Critical	High	Medium	Low	Total (0)
✅	Open Source Security	0	0	0	0	0 issues
✅	Licenses	0	0	0	0	0 issues

💻 Catch issues earlier using the plugins for VS Code, JetBrains IDEs, Visual Studio, and Eclipse.

[Copilot]

Pull request overview

This PR updates EuiToolTip hover behavior to make adjacent tooltip triggers feel like a continuous interaction by skipping the entry animation when moving quickly between triggers, while also addressing prior flicker behavior by switching to non-bubbling mouse events.

Changes:

• Add a skipAnimation signal to the tooltip manager (time-window based) and use it to inline-disable the entry animation on the next tooltip render.
• Switch tooltip triggers from onMouseOver/onMouseOut to onMouseEnter/onMouseLeave to avoid child-to-child mouseout flicker.
• Add/adjust unit tests and add a Storybook story to exercise tooltip group behavior.

Reviewed changes

Copilot reviewed 8 out of 10 changed files in this pull request and generated 1 comment.

Show a summary per file

File	Description
packages/eui/src/components/tool_tip/tool_tip.tsx	Uses manager-provided skipAnimation + switches trigger mouse handlers to mouseenter/leave.
packages/eui/src/components/tool_tip/tool_tip.test.tsx	Adds regression test for skipping entry animation and resets singleton manager between tests.
packages/eui/src/components/tool_tip/tool_tip.stories.tsx	Adds a “TooltipGroup” story to demo grouped tooltip behavior.
packages/eui/src/components/tool_tip/tool_tip_manager.ts	Implements time-window-based skipAnimation signal + adds reset() for tests.
packages/eui/src/components/tool_tip/tool_tip_manager.test.ts	Adds unit coverage for skipAnimation behavior and uses the new reset().
packages/eui/src/components/tool_tip/tool_tip_anchor.tsx	Updates anchor to accept/pass onMouseEnter/onMouseLeave.
packages/eui/src/components/selectable/selectable_list/selectable_list_item.test.tsx	Resets tooltip manager singleton to prevent cross-test animation state leakage.
packages/eui/changelogs/upcoming/9749.md	Adds changelog entry for the tooltip behavior change.

---

💡 Add Copilot custom instructions for smarter, more guided reviews. Learn how to get started.

[elastic-vault-github-plugin-prod]

1 visual difference(s) found - expand to review, then click Approve visual changes to update baselines

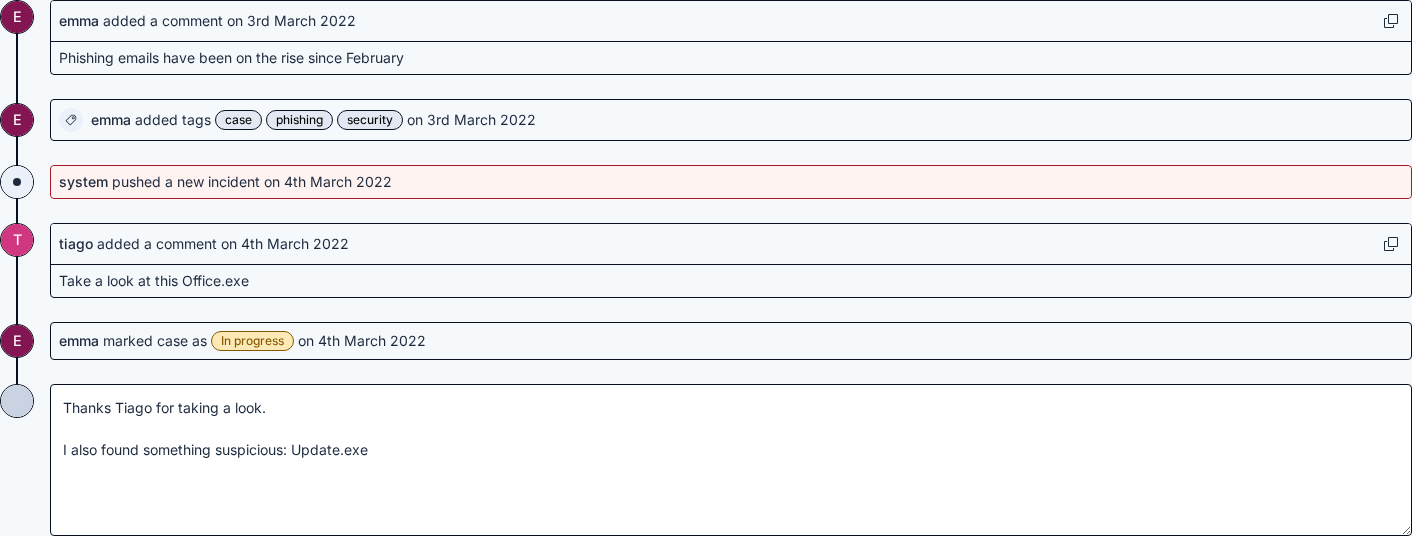

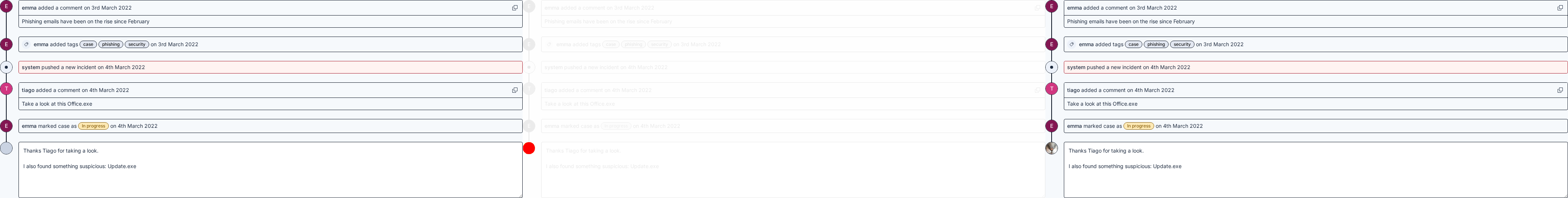

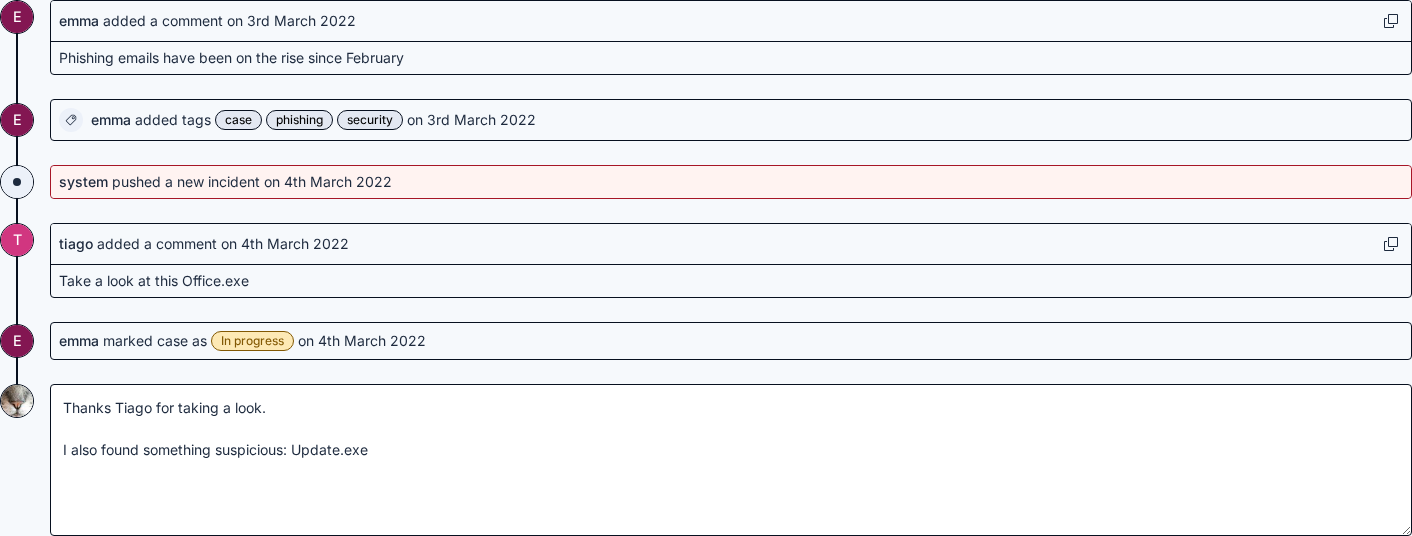

euicomment (1 difference)

Story	Before	After	Diff
high contrast desktop

[infra-vault-gh-plugin-prod]

💚 Build Succeeded

• Buildkite Build
• Commit: 86a3262

History

• 💚 Build #7020 succeeded b3097dc
• 💚 Build #6995 succeeded 2e7726a
• 💚 Build #6992 succeeded 90ee6b1
• 💚 Build #6937 succeeded 07d9df8
• 💚 Build #6936 succeeded db284c0
• 💚 Build #6865 succeeded f0aabe3

cc @weronikaolejniczak

[infra-vault-gh-plugin-prod]

💚 Build Succeeded

• Buildkite Build
• Commit: 86a3262
• Documentation website
• Storybook
• ✅ Visual regression tests passed

History

• 💚 Build #4176 succeeded 2e7726a
• 💚 Build #4094 succeeded 07d9df8
• 💚 Build #4091 succeeded db284c0
• 💚 Build #4090 succeeded db284c0
• 💚 Build #3984 succeeded f0aabe3
• 💔 Build #3981 failed f5e051b

cc @weronikaolejniczak
